4L5022 LITE Liner Silikon SkinTex 3 L SOFT pro Locking
Description

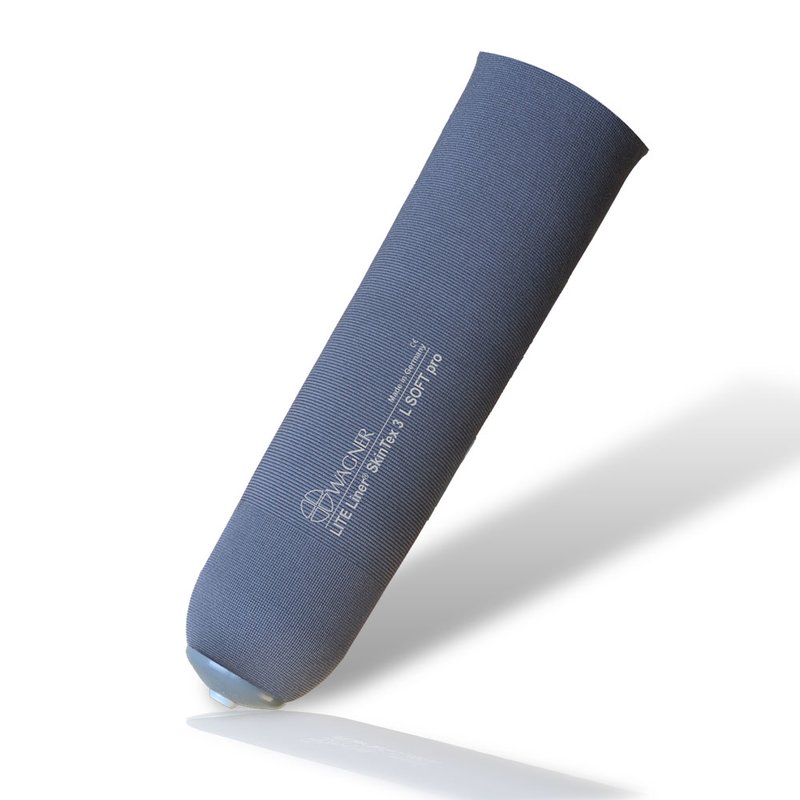

4L5022 LITE LinerŽ Silicone SkinTex 3 L SOFT pro Locking
Mobility class: 1-3
for BK stumps
Connector: Locking (with distal connector)
Properties
- Made from medical grade* silicone gel
- Seamless fabric cover
- Length approx. 43 cm
- Integrated outside matrix
- Standard with approx. 10 cm matrix

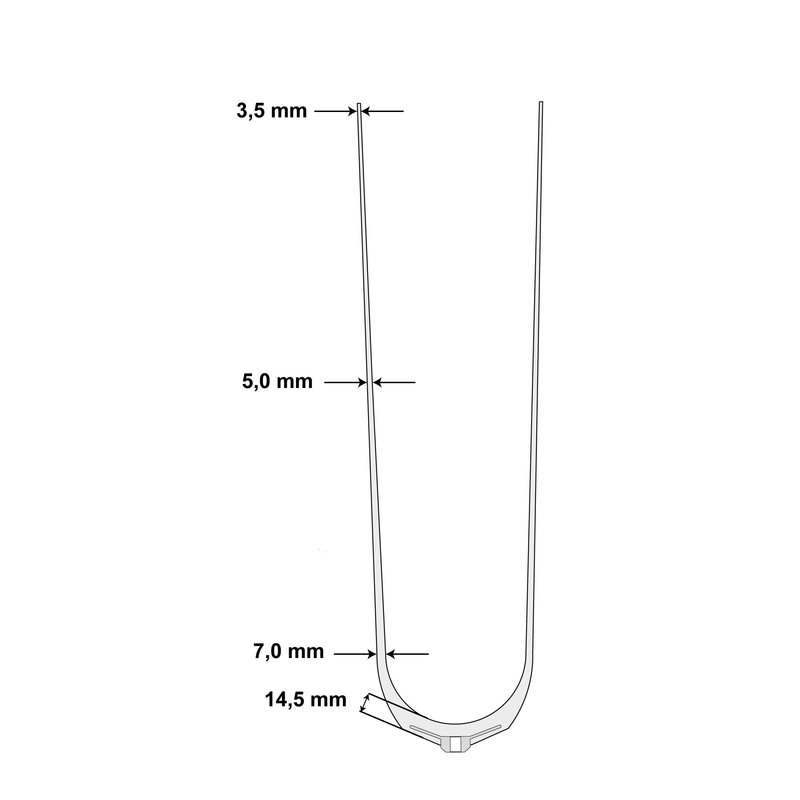

- Comfort by using approx. 2.5 mm ComfortSil silicone gel
- Perfect pressure distribution
- Textile fabric for easy donning
- Reduced pistoning by the matrix
| Article-No. | Matrix length | Distal Circumference |
| 4L5022-18 | approx. 10 cm | 18 cm |
| 4L5022-20 | approx. 10 cm | 20 cm |
| 4L5022-21 | approx. 10 cm | 21 cm |
| 4L5022-22 | approx. 10 cm | 22 cm |
| 4L5022-23,5 | approx. 10 cm | 23,5 cm |
| 4L5022-25 | approx. 10 cm | 25 cm |
| 4L5022-26,5 | approx. 10 cm | 26,5 cm |
| 4L5022-28 | approx. 10 cm | 28 cm |
| 4L5022-30 | approx. 10 cm | 30 cm |
| 4L5022-32 | approx. 10 cm | 32 cm |
| 4L5022-34 | approx. 10 cm | 34 cm |
| 4L5022-36 | approx. 10 cm | 36 cm |
| 4L5022-38 | approx. 10 cm | 38 cm |
| 4L5022-40 | approx. 10 cm | 40 cm |
| 4L5022-42 | approx. 10 cm | 42 cm |
| 4L5022-45 | approx. 10 cm | 45 cm |
Remark:: The silicones used have been tested for biocompatibility according to DIN EN ISO 10993-5.
Sizing
How to choose the correct liner size
a) Measure the circumference of the residual limb at 4 cm from the distal end.
b) Choose the liner size corresponding to this measurement or the next smaller size, respectively.
c) Do not choose a liner whose size exceeds the measurement taken.
d) Never reduce by more than one liner size in order to avoid unnecessarily high compression.
Important:
In locking liners, a matrix with 10 cm length is integrated as a standard.This matrix should end below the head of the fibula and must not exceed it, as this could result in problems during knee flexion.
