4L5122 LITE Liner Silikon SkinTex 3 L SOFT pro Cushion
Description

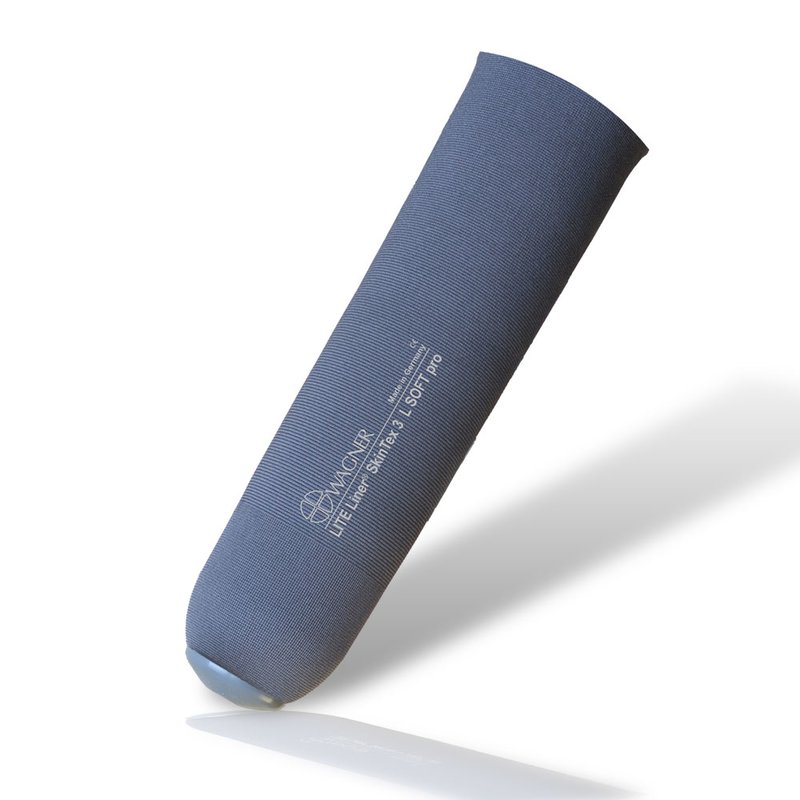

4L5122 LITE Liner® Silicone SkinTex 3 L SOFT pro Cushion
Mobility class: 1-3
for BK stumps
Connector: Cushion
Properties
- Made from medical grade* silicone gel
- Seamless fabric cover
- Length approx. 43 cm
- Integrated outside matrix
- Standard with approx. 10 cm matrix
- Comfort by using ComfortSil silicone gel
- Perfect pressure distribution
- Textile fabric for easy donning
- Reduced pistoning by the matrix
| Article-No. | Matrix length | Distal Circumference |
| 4L5122-18 | approx. 10 cm | 18 cm |
| 4L5122-20 | approx. 10 cm | 20 cm |
| 4L5122-21 | approx. 10 cm | 21 cm |
| 4L5122-22 | approx. 10 cm | 22 cm |
| 4L5122-23,5 | approx. 10 cm | 23,5 cm |
| 4L5122-25 | approx. 10 cm | 25 cm |
| 4L5122-26,5 | approx. 10 cm | 26,5 cm |
| 4L5122-28 | approx. 10 cm | 28 cm |
| 4L5122-30 | approx. 10 cm | 30 cm |
| 4L5122-32 | approx. 10 cm | 32 cm |
| 4L5122-34 | approx. 10 cm | 34 cm |
| 4L5122-36 | approx. 10 cm | 36 cm |
| 4L5122-38 | approx. 10 cm | 38 cm |
| 4L5122-40 | approx. 10 cm | 40 cm |
| 4L5122-42 | approx. 10 cm | 42 cm |
| 4L5122-45 | approx. 10 cm | 45 cm |
Remark:: The silicones used have been tested for biocompatibility according to DIN EN ISO 10993-5.
Sizing
Selecting the correct liner size
a) Measure the residual-limb circumference 4 cm above the distal end.
b) Choose the liner size that matches this measurement, or the next smaller size.
c) Do not select a liner size larger than the measured circumference.
d) Never reduce by more than one liner size to avoid unnecessarily high compression.
Important!
In a liner with connector, a matrix with approx. 10 cm length is integrated as standard. This matrix must end distal to the fibular head and must not extend beyond it, otherwise problems with knee flexion may occur.
