4W1134 LITE Liner Silicone POST OP
Description

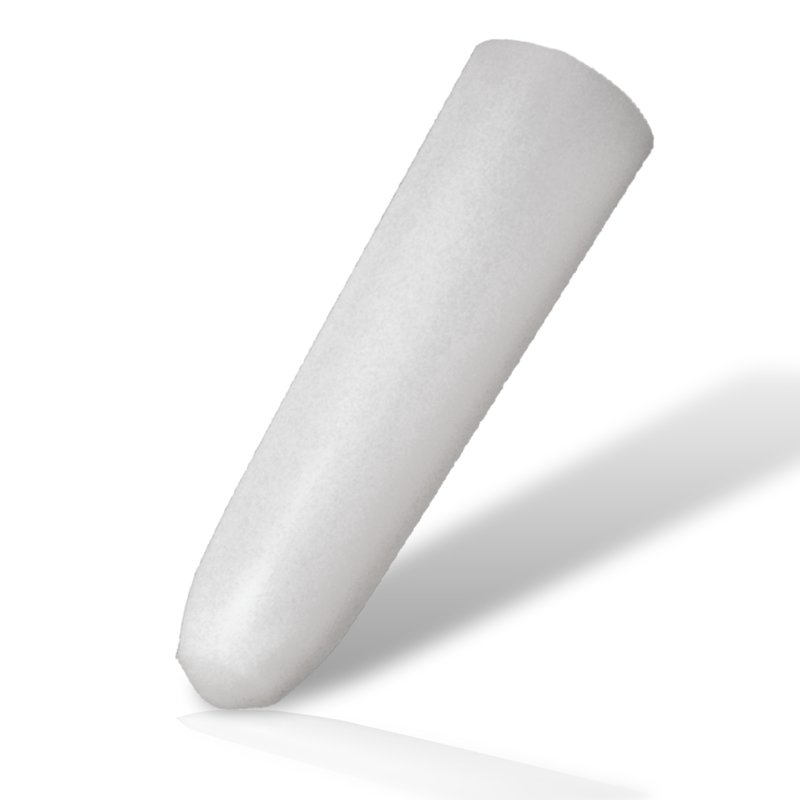

4W1134 LITE Liner® Silicone POST OP
Mobility class: 0
for BK stumps
Connector: Cushion (w/o distal connector)
Properties:
- made from medical grade* silicone
- no fabric cover
- stability by using 2,5 mm DuraSil
- high adhesion between liner and skin
- perfect pressure distribution
Article No. Distal circumference 4W1134-16 16 cm 4W1134-18 18 cm 4W1134-20 20 cm 4W1134-21 21 cm 4W1134-22 22 cm 4W1134-23,5 23,5 cm 4W1134-25 25 cm 4W1134-26,5 26,5 cm 4W1134-28 28 cm 4W1134-30 30 cm 4W1134-32 32 cm 4W1134-34 34 cm 4W1134-36 36 cm 4W1134-38 38 cm 4W1134-40 40 cm 4W1134-42 42 cm 4W1134-45 45 cm 4W1134-50 50 cm 4W1134-55 55 cm
Remark:: The silicones used have been tested for biocompatibility according to DIN EN ISO 10993-5.
Sizing
How to choose the correct liner size
a) Measure the circumference of the residual limb at 4 cm from the distal end.
b) Choose the liner size corresponding to this measurement or the next smaller size, respectively.
c) Do not choose a liner whose size exceeds the measurement taken.
d) Never reduce by more than one liner size in order to avoid unnecessarily high compression.
Important:
In locking liners, a matrix with 10 cm length is integrated as a standard.This matrix should end below the head of the fibula and must not exceed it, as this could result in problems during knee flexion.
