4W4010-TF LITE Liner Silikon SkinTex 1 TF Locking
Description

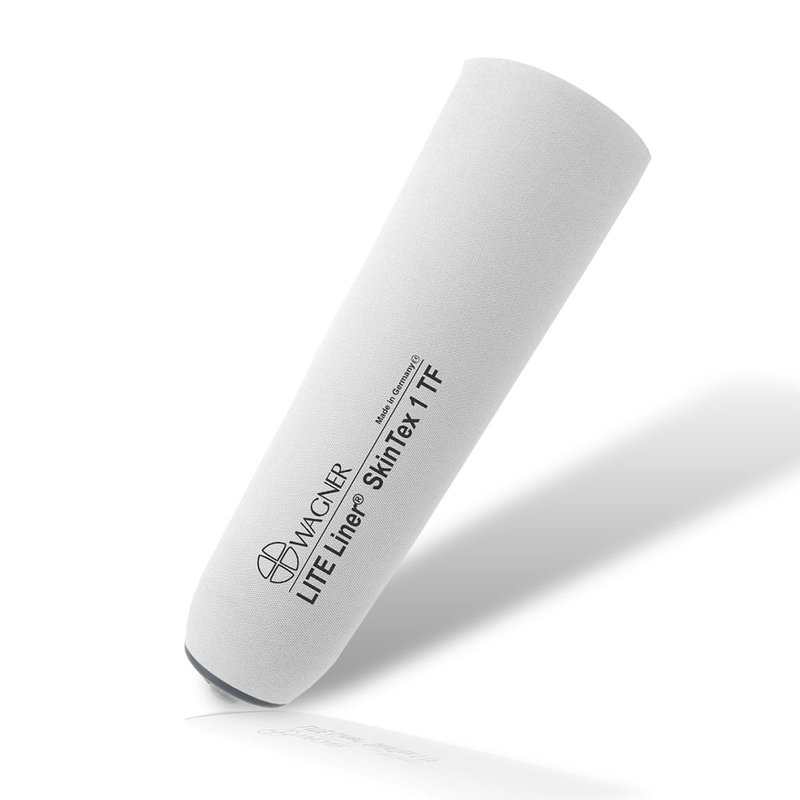

4W4010-TF LITE Liner® Silicone SkinTex 1 TF Locking
Mobility class: 1-4
for TF stumps
Connector: Locking (with distal connector)
Properties
- Made from medical grade* silicone
- Seamless fabric cover
- Standard with total length matrix

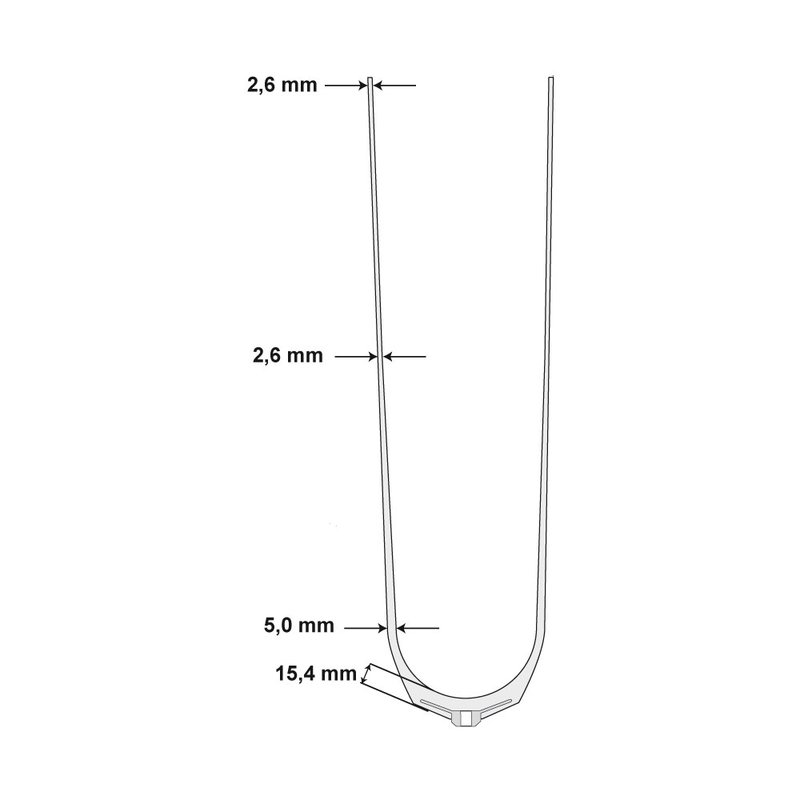

- Stability by using approx. 2 mm DuraSil
- High adhesion between liner and skin
- Perfect pressure distribution
- Textile fabric for easy donning
- Reduced pistoning by the matrix
- Suitable for nearly all locking devices
| Article-No. | Matrix | Distal Circumference |
| 4W4010-TF-26,5 | total length | 26,5 cm |
| 4W4010-TF-28 | total length | 28 cm |
| 4W4010-TF-30 | total length | 30 cm |
| 4W4010-TF-32 | total length | 32 cm |
| 4W4010-TF-34 | total length | 34 cm |
| 4W4010-TF-36 | total length | 36 cm |
| 4W4010-TF-38 | total length | 38 cm |
| 4W4010-TF-40 | total length | 40 cm |
| 4W4010-TF-42 | total length | 42 cm |
| 4W4010-TF-45 | total length | 45 cm |
| 4W4010-TF-50 | total length | 50 cm |
| 4W4010-TF-55 | total length | 55 cm |
Important!
This liner is equipped with a total length matrix as standard. The matrix provides stability and reduces pistoning.
Remark:
- Standard with matrix length of 10 cm, the matrix lengths 0 cm, 5 cm as well as 15 cm are available as well.
- We reserve the right to technical changes of the products.
- The Silicones used have been tested for biocompatibility according to DIN EN ISO 10993-5 and 10993-10.
Sizing
Selecting the correct liner size
a) Measure the residual-limb circumference 4 cm above the distal end.
b) Choose the liner size that matches this measurement, or the next smaller size.
c) Do not select a liner size larger than the measured circumference.
d) Never reduce by more than one liner size to avoid unnecessarily high compression.
Important!
In a liner with connector, a matrix with approx. 10 cm length is integrated as standard. This matrix must end distal to the fibular head and must not extend beyond it, otherwise problems with knee flexion may occur.
