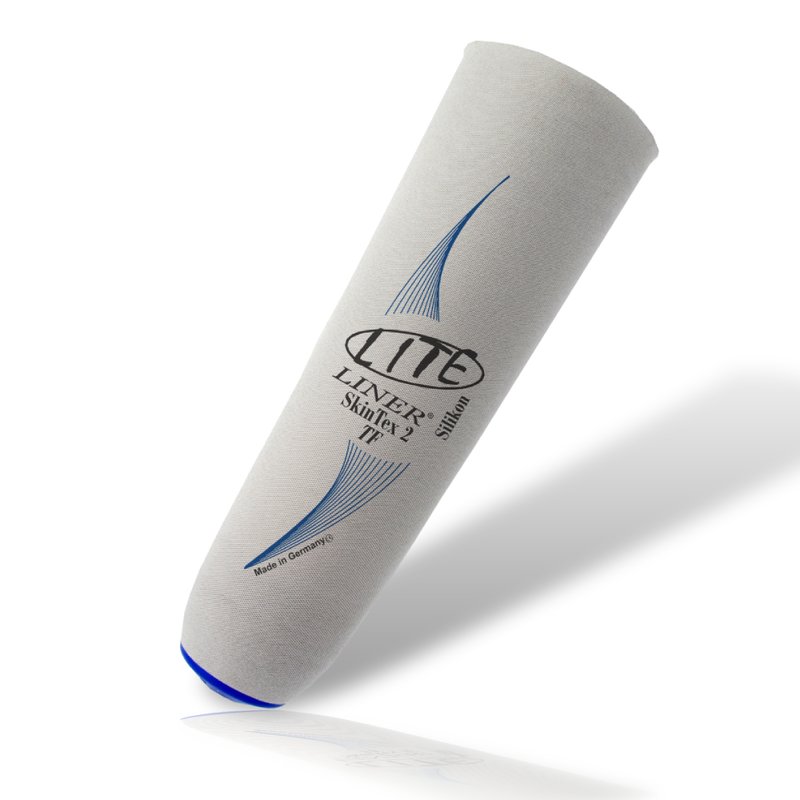

4W4121-TF LITE Liner Silikon SkinTex2 TF Cushion
Description
4W4121-TF LITE Liner Silikon SkinTex 2 TF Cushion
Mobility class: 2-4
for AK stumps
Connector: Cushion (w/o distal connector)
Properties:
- made from medical grade* silicone
- seamless Fabric cover
-
Standard with total length Matrix
- stability by using 2,5 mm DuraSil
- high adhesion between liner and skin
- perfect pressure distribution
- reduced pistoning by the matrix
| Article No. | Matrix length | Distal Circumference |
| 4W4121-TF-26,5 | total matrix | 26,5 cm |
| 4W4121-TF-28 | total matrix | 28 cm |
| 4W4121-TF-30 | total matrix | 30 cm |
| 4W4121-TF-32 | total matrix | 32 cm |
| 4W4121-TF-34 | total matrix | 34 cm |
| 4W4121-TF-36 | total matrix | 36 cm |
| 4W4121-TF-38 | total matrix | 38 cm |
| 4W4121-TF-40 | total matrix | 40 cm |
| 4W4121-TF-42 | total matrix | 42 cm |
| 4W4121-TF-45 | total matrix | 45 cm |
| 4W4121-TF-50 | total matrix | 50 cm |
| 4W4121-TF-55 | total matrix | 55 cm |
Remark:
- Standard with matrix length of 10 cm, the matrix lengths 0 cm, 5 cm as well as 15 cm are available as well.
- We reserve the right to technical changes of the products.
- The Silicones used have been tested for biocompatibility according to DIN EN ISO 10993-5 and 10993-10.
Sizing
How to choose the correct liner size
a) Measure the circumference of the residual limb at 4 cm from the distal end.
b) Choose the liner size corresponding to this measurement or the next smaller size, respectively.
c) Do not choose a liner whose size exceeds the measurement taken.
d) Never reduce by more than one liner size in order to avoid unnecessarily high compression.
Important:
In locking liners, a matrix with 10 cm length is integrated as a standard.This matrix should end below the head of the fibula and must not exceed it, as this could result in problems during knee flexion.
