4U4025 LITE Liner Silikon SkinTex 2 U CARE Locking

Item number: 4U4025

Category: All products

Size
Color

Amputation level: BK
Connector: Locking
Fabric Type: SkinTex without seam

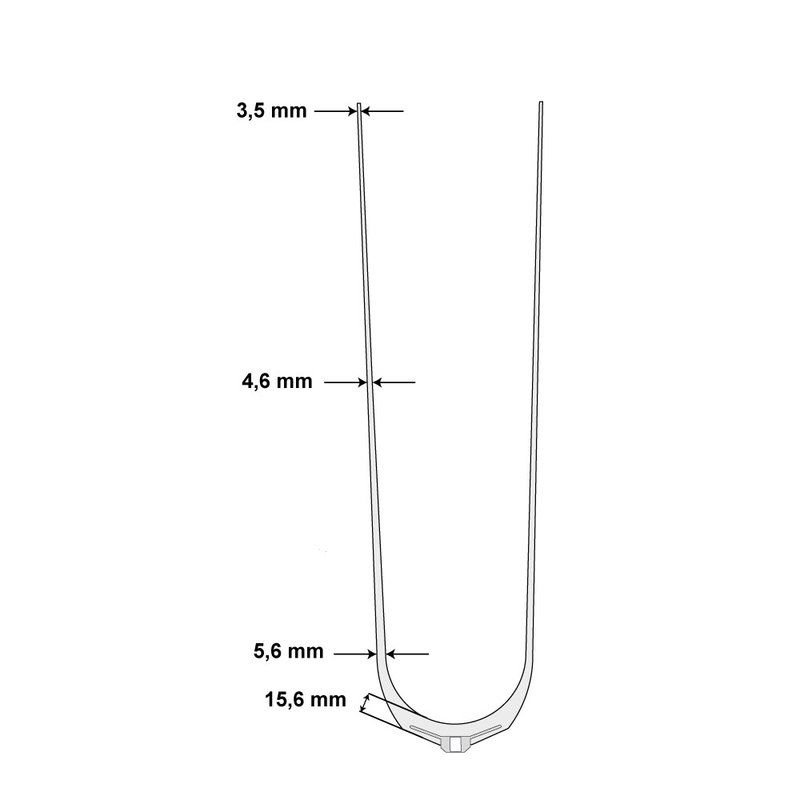

Liner Thickness: 3 mm
Liner Profile: Uniform
Material Liner: CareSil Silicone Gel
Matrix: with outside matrix
Mobility grade: mobility class: 1-3

There are variations of this item. Please select the variation you wish.

Description

4U4025 LITE Liner Silikon SkinTex 2 U CARE Locking

Mobility class: 1-3
for BK stumps
Connector: Locking (with distal connector)

Properties:

  • Skin caring ingredients
  • antibacterial properties

  • made from medical grade* silicone gel
  • seamless fabric cover
  • length approx. 38 cm
  • integrated outside matrix



  • standard with approx. 10 cm matrix
  • high comfort by using approx. 2,5 mm CareSil Silicone Gel
  • high adhesion between liner and skin
  • perfect pressure distribution
  • textile fabric for easy donning
  • reduced pistoning by the matrix
  • suitable for nearly all locking devices



Article-No.
Grey
Matrix length Distal Circumference
4U4025-10-18-G approx. 10 cm 18 cm
4U4025-10-20-G approx. 10 cm 20 cm
4U4025-10-21-G approx. 10 cm 21 cm
4U4025-10-22-G approx. 10 cm 22 cm
4U4025-10-23,5-G approx. 10 cm 23,5 cm
4U4025-10-25-G approx. 10 cm 25 cm
4U4025-10-26,5-G approx. 10 cm 26,5 cm
4U4025-10-28-G approx. 10 cm 28 cm
4U4025-10-30-G approx. 10 cm 30 cm
4U4025-10-32-G approx. 10 cm 32 cm
4U4025-10-34-G approx. 10 cm 34 cm
4U4025-10-36-G approx. 10 cm 36 cm
4U4025-10-38-G approx. 10 cm 38 cm
4U4025-10-40-G approx. 10 cm 40 cm
4U4025-10-42-G approx. 10 cm 42 cm
4U4025-10-45-G approx. 10 cm 45 cm



Sizing

 How to choose the correct liner size
a) Measure the circumference of the residual limb at 4 cm from the distal end.
b) Choose the liner size corresponding to this measurement or the next smaller size, respectively.
c) Do not choose a liner whose size exceeds the measurement taken.
d) Never reduce by more than one liner size in order to avoid unnecessarily high compression.

Important:
In locking liners, a matrix with 10 cm length is integrated as a standard.This matrix should end below the head of the fibula and must not exceed it, as this could result in problems during knee flexion.
