4U4121 LITE Liner Silicone SkinTex 2 U Cushion

Item number: 4U4121

Category: All products

Size
Color
Amputation level: BK
Connector: Cushion
Fabric Type: SkinTex without seam
Liner Thickness: 3 mm
Liner Profile: Uniform
Material Liner: DuraSil
Matrix: with outside matrix
Mobility grade: mobility class: 2-4

There are variations of this item. Please select the variation you wish.

Description

4U4121 LITE Liner Silicone SkinTex 2 U Cushion

Mobility class: 2-4
for BK stumps
Connector: Cushion(without distal connector)

Properties:

  • made from medical grade* silicone
  • seamless fabric cover
  • length approx. 38 cm
  • integrated outside matrix

  • Standard with 10 cm Matrix

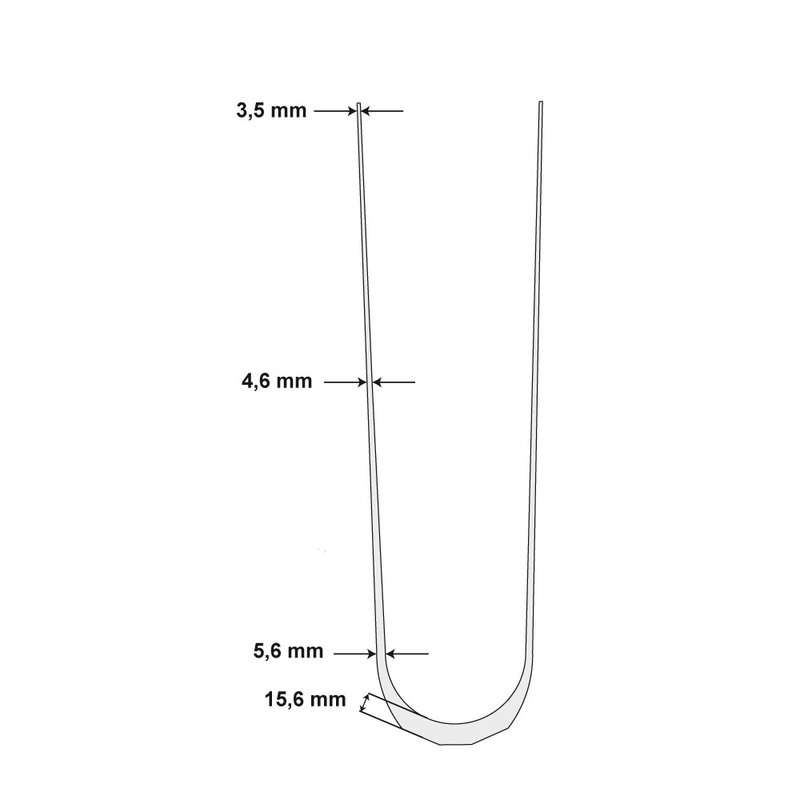

  • stability by using 2,5 mm DuraSil
  • high adhesion between liner and skin
  • perfect pressure distribution
  • reduced pistoning by the matrix
Article-No.
Grey		 Article-No.
skin color		 Matrix length Distal Circumference
4U4121-18-G 4U4121-18-H approx. 10 cm 18 cm
4U4121-20-G 4U4121-20-H approx. 10 cm 20 cm
4U4121-21-G 4U4121-21-H approx. 10 cm 21 cm
4U4121-22-G 4U4121-22-H approx. 10 cm 22 cm
4U4121-23,5-G 4U4121-23,5-H approx. 10 cm 23,5 cm
4U4121-25-G 4U4121-25-H approx. 10 cm 25 cm
4U4121-26,5-G 4U4121-26,5-H approx. 10 cm 26,5 cm
4U4121-28-G 4U4121-28-H approx. 10 cm 28 cm
4U4121-30-G 4U4121-30-H approx. 10 cm 30 cm
4U4121-32-G 4U4121-32-H approx. 10 cm 32 cm
4U4121-34-G 4U4121-34-H approx. 10 cm 34 cm
4U4121-36-G 4U4121-36-H approx. 10 cm 36 cm
4U4121-38-G 4U4121-38-H approx. 10 cm 38 cm
4U4121-40-G 4U4121-40-H approx. 10 cm 40 cm
4U4121-42-G 4U4121-42-H approx. 10 cm 42 cm
4U4121-45-G 4U4121-45-H approx. 10 cm 45 cm
4U4121-50-G 4U4121-55-H approx. 10 cm 50 cm
4U4121-50-G 4U4121-55-H approx. 10 cm 55 cm



Sizing

Selecting the correct liner size
a) Measure the residual-limb circumference 4 cm above the distal end.
b) Choose the liner size that matches this measurement, or the next smaller size.
c) Do not select a liner size larger than the measured circumference.
d) Never reduce by more than one liner size to avoid unnecessarily high compression.

Measuring liner size

Important!
In a liner with connector, a matrix with approx. 10 cm length is integrated as standard. This matrix must end distal to the fibular head and must not extend beyond it, otherwise problems with knee flexion may occur.
